2051 (DC)
DC DC DC DC DC DC DC DC DC DC DC DC DC DC
2051 (DC)
|
DC Ammeter |
2051 01 2051 02 2051 03 2051 04 |
30/100/300/1000/3000§Ë DC 0.3/1/3/10/30mA DC 10/30/100/300/1000mA DC 0.3/1/3/10/30A DC |
|
DC Voltmeter |
2051 05 2051 06 |
0.3/1/3/10/30V DC 3/10/30/100/300V DC |
|
Zero-center DC Ammeter |
2051 11 2051 12 2051 13 2051 14 2051 15 2051 16 |
±0.15/0.5/1.5/5/15mA DC ±0.3/1/3/10/30mA DC ±5/15/50/150/500mA DC ±10/30/100/300/1000mA DC ±0.15/0.5/1.5/5/15A DC ±0.3/1/3/10/30A DC |
|
Zero-center DC Voltmeter |
2051 17 2051 18 2051 19 2051 20 |
±0.15/0.5/1.5/5/15V DC ±0.3/1/3/10/30V DC ±1.5/5/15/50/150V DC ±3/10/30/100/300V DC |
| Specifications (by Model) | |||||
| Models | Scale Meter Type | Maximum Scale Value | Operating Principle | AC or DC | Approximate internal resistance and consumed power |
| 2051 01 | Single Deflecting | 30/100/300/1000/3000 ¥ìA | Permanent Magnet Moving Coil Type | DC | 3k/6.8k/2.7k/0.9/0.3 k¥Ø |
| 2051 02 | 0.3/1/3/10/30 mA | 970/390/140/43/14 ¥Ø | |||
| 2051 03 | 10/30/100/300/1000mA | 4/1.4/0.4/0.14/0.04 ¥Ø | |||
| 2051 04 | 0.3/1/3/10/30 A | 0.14/0.04/0.014/0.004/0.001¥Ø | |||
| 2051 05 | 0.3/1/3/10/30 V | 100 ¥ìA (10 k¥Ø/V) | |||
| 2051 06 | 3/10/30/100/300 V | ||||
| Specifications (for all 2050 Models) |
Details | |
| Class | 2051 | JIS C 102: 1997 Class 1.0 |
| 2052, 2053 | JIS C 102: 1997 Class 1.5 | |
| Operating Position | Horizontal | |
| Scale Length | Approximately 135mm (deflection angel: 85%) | |
| Needle | Bladed Needle (red) | |
| Operation frequency Range | 45~65 HZ | |
| Linemax | 250V | |
| Operating temperature and Humidity Ranges | 0~40°C, 30~75%RH | |
| Storage Temperature and humidity Ranges | -10~50°C, 25~80%RH | |
| External dimensions and weight | Approx. 113 x 106 x 46mm (Approx. 0.35kg) | |
2011
|
DC Ammeter |
2011 31 2011 32 2011 33 2011 34 2011 35 2011 36 2011 37 |
3/10/30/100§Ë DC ; Class 1.0 10/30/100/300§Ë DC ; Class 1.0 0.1/0.3/1/3mA DC 1/3/10/30mA DC 10/30/100/300mA DC 0.1/0.3/1/3A DC 1/3/10/30A DC |
|
DC Voltmeter |
2011 38 2011 39 2011 40 |
0.3/1/3/10V DC 3/10/30/100V DC 30/100/300/1000V DC |
|
DC Ammeter (for external shunt) |
2011 41 |
(50mV DC) (Engineering unit : A) |
|
DC Voltmeter (for external multiflier) |
2011 42 |
(3V DC) scale division (Engineering unit : V) |
|
DC Volt-Ammeter(17-range) |
2012 00 |
3/10/30/100/300/1000V 1/3/10/30/100/300mA DC 1/3/10/30A DC/ 50mV DC |
| Specifications (by Model) | ||
| Models | Maximum Scale Value | Approximate internal resistance and consumed power |
| 2011 31 | 3/10/30/100 µA* | 5.1/18.3/7.7/2.5 k§Ù |
| 2011 32 | 10/30/100/300 µA* | 6.8/6.8/2.5/0.88 k§Ù |
| 2011 33 | 0.1/0.3/1/3 mA | 750/ 750/ 278 /97.5 §Ù |
| 2011 34 | 1/3/10/30 mA | 23/14/4.7/1.6 §Ù |
| 2011 35 | 10/30/100/300 mA | Voltage Drop 50 mV |
| 2011 36 | 0.1/0.3/1/3 A | |
| 2011 37 | 1/3/10/30 A | |
| 2011 38 | 0.3/1/3/10 V | 1 mA (1000 §Ù/V) |
| 2011 39 | 3/10/30/100 V | |
| 2011 40 | 30/100/300/1000 V | |
| 2011 41 | (50 mV) | 93 §Ù |
| 2011 42 | (1 mA) | Voltage Drop 3 V (1000 §Ù/V) |
| Specifications (for all 2011 Models) |
Details |
| Operating Principle | Permanent moving coil |
| Class | JIS C 102: 1997 Class 0.5 (* Equivalent to class 1.0) |
| Operating Position | Horizontal |
| Scale Length | Approximately 135mm (deflection angel: 85%) |
| Scale Divisions | 100/150 |
| Linemax | 250V |
| Operating temperature and Humidity Ranges | 0~40°C, 30~75%RH |
| Storage Temperature and humidity Ranges | -10~50°C, 25~80%RH |
| External dimensions and weight | Approx. 197 x 181 x 92mm (Approx. 1.7kg) |
| Additional Notes | 1) * Indicate models which are not
JIS- approved 2) For ranges higher then 30A, externally connect a shunt to the 50 mV terminal on 2011 41 (50mV instrument) or 2012; Both come with a set of shunt cables. Different cables may be used if the cable resistance is 0.1W or less 3) For ranges higher then 1000V, use 201242 (1mA Instrument) or externally connect external multiplier 2222 or 2223 to 1mA terminal on 2011 or 2012 |
2012
| Specifications | 2012 00 Details | |||
| Maximum Scale Value |
1/ 3 / 10 / 30 / 100 mA |
|||
| Approximate internal resistance and consumed power | Voltage Measurement Range Approximately 1 mA (1000W/V) | |||
| Range | Voltage Drop | Range | Voltage Drop | |
| 1 mA | 24 mV | 1 A | 53 mV | |
| 3 mA | 41 mV | 3 A | 56 mV | |
| 10 mA | 47 mV | 10 A | 75 mV | |
| 30 mA | 49 mV | 30 A | 100 mV | |
| 100 mA | 50 mV | 50 mV | 59§Ù | |
| 300 mA | 51 mV | - | - | |
| Operating Principle | Permanent moving coil | |||
| Class | JIS C 102: 1997 Class 0.5 (* Equivalent to class 1.0) | |||
| Operating Position | Horizontal | |||
| Scale Length | Approximately 135mm (deflection angel: 85%) | |||
| Scale Divisions | 100/150 | |||
| Operating temperature and Humidity Ranges | 0~40°C, 30~75%RH | |||
| Storage Temperature and humidity Ranges | -10~50°C, 25~80%RH | |||
| External dimensions and weight | Approx. 260 x 180 x 120mm (Approx. 2.8kg) | |||
| Additional Notes | 1) For ranges higher
then 30A, externally connect a shunt to the 50 mV terminal on 2011 41 (50mV
instrument) or 2012; Both come with a set of shunt cables. Different cables may
be used if the cable resistance is 0.1W or less 2) For ranges higher then 1000V, use 201242 (1mA Instrument) or externally connect external multiplier 2222 or 2223 to 1mA terminal on 2011 or 2012 |
|||
AC AC AC AC AC AC AC AC AC AC AC AC AC AC
2052 2053 (AC)
| 2052 01 | Single Deflecting | 0.5/1/2.5 mA | Rectifier
Type (Approximating RMS Rectifier type for 15~300V) |
AC | 3 V |
| 2052 02 | 2.5/5/10 mA | ||||
| 2052 03 | 10/25/50 mA | ||||
| 2052 04 | 50/100/250 mA | ||||
| 2052 05 | 3/7.5/15 V | 1 mA | |||
| 2052 06 | 15/30/75 V | ||||
| 2052 07 | 75/150/300 V | ||||
| 2053 01 | 0.25/0.5/1 A | Moving Iron Type | 1/1/1 VA | ||
| 2053 02 | 1/2.5/5 A | 0.9/0.8/0.7 VA | |||
| 2053 03 | 5/10/25 A | 0.6/0.9/2.3 VA |
2014 (220V)
0.15A / 0.3A / 0.75 A/ 1.5A / 3 A
33W / 66W / 165W / 330W / 660W
/ 7.5A / 15A / 30A AC
1650W / 3300 / 6600W
|
AC Ammeter |
2013 01 2013 02 2013 03 |
20/100mA AC 50/250mA AC 100/500mA AC |
|
2013 04 2013 05 2013 06 2013 07 2013 08 2013 09 |
0.2/1A AC 0.5/2.5A AC 1/5A AC 2/10A AC 5/25A AC 10/50A AC |
|
|
2013 10 2013 11 2013 12 2013 13 2013 14 |
20/50/100/200mA AC 0.1/0.2/0.5/1A AC 0.5/1/2/5A AC 2/5/10/20A AC 10/20/50/100A AC |
|
|
AC Voltmeter |
2013 15 2013 16 2013 17 2013 18 2013 19 |
15/30V AC 30/75V AC 75/150V AC 150/300V AC 300/750V AC |
|
AC Ammeter (for use with external CT) |
2013 20 |
(5A AC)100/150 scale division |
|
AC Voltmeter (for use with external PT) |
2013 21 |
(150V AC)100/150 scale division |
|
AC Ammeter(with dedicated CT) |
2013 22 |
for 500A AC with CT:2244(500AT) |
|
AC 400Hz Ammeter |
2013 23 2013 24 2013 25 |
0.5/1/2/5A AC 2/5/10/20A AC 10/20/50/100A AC |
|
AC 400Hz Voltmeter |
2013 26 2013 27 |
75/150V AC 150/300V AC |
|

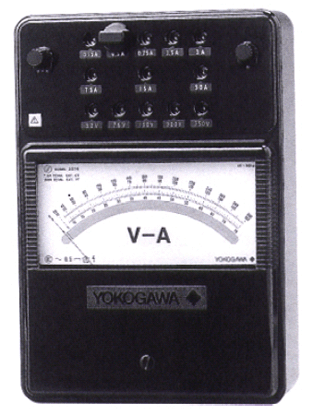

AC Volt-Ammeter(13 range) |
2014 00 |
30/75/150/300/750V AC 0.15/0.3/0.75/1.5/3/7.5/15/30A AC |
| Specifications | |||||
| Models | Maximum Scale Value | Scale Divisions | Approximate internal
resistance and consumed power |
||
| 2014 00 | 30/75/150/300/750 V 0.15/0.3/0.75/1.5/3/7.5/15/30A |
150 Divisions | Each Voltage measurement range | Current Measurement Range | |
| 4.5 VA | 7.5A or less | 0.7 VA | |||
| 15 A | 0.9 VA | ||||
| 30 A | 2 VA | ||||
| Specifications (for all 2013 Models) |
Details |
| Operating Principle | Moving Iron Type |
| Class | JIS C 102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135mm (deflection angel: 85%) |
| Operation frequency Range | 45~65 HZ |
| Linemax | 250V |
| Operating temperature and Humidity Ranges | 0~40°C, 30~75%RH |
| Storage Temperature and humidity Ranges | -10~50°C, 25~80%RH |
| External dimensions and weight | Approx. 260 x 180 x 120mm (Approx. 4.2 kg) |
